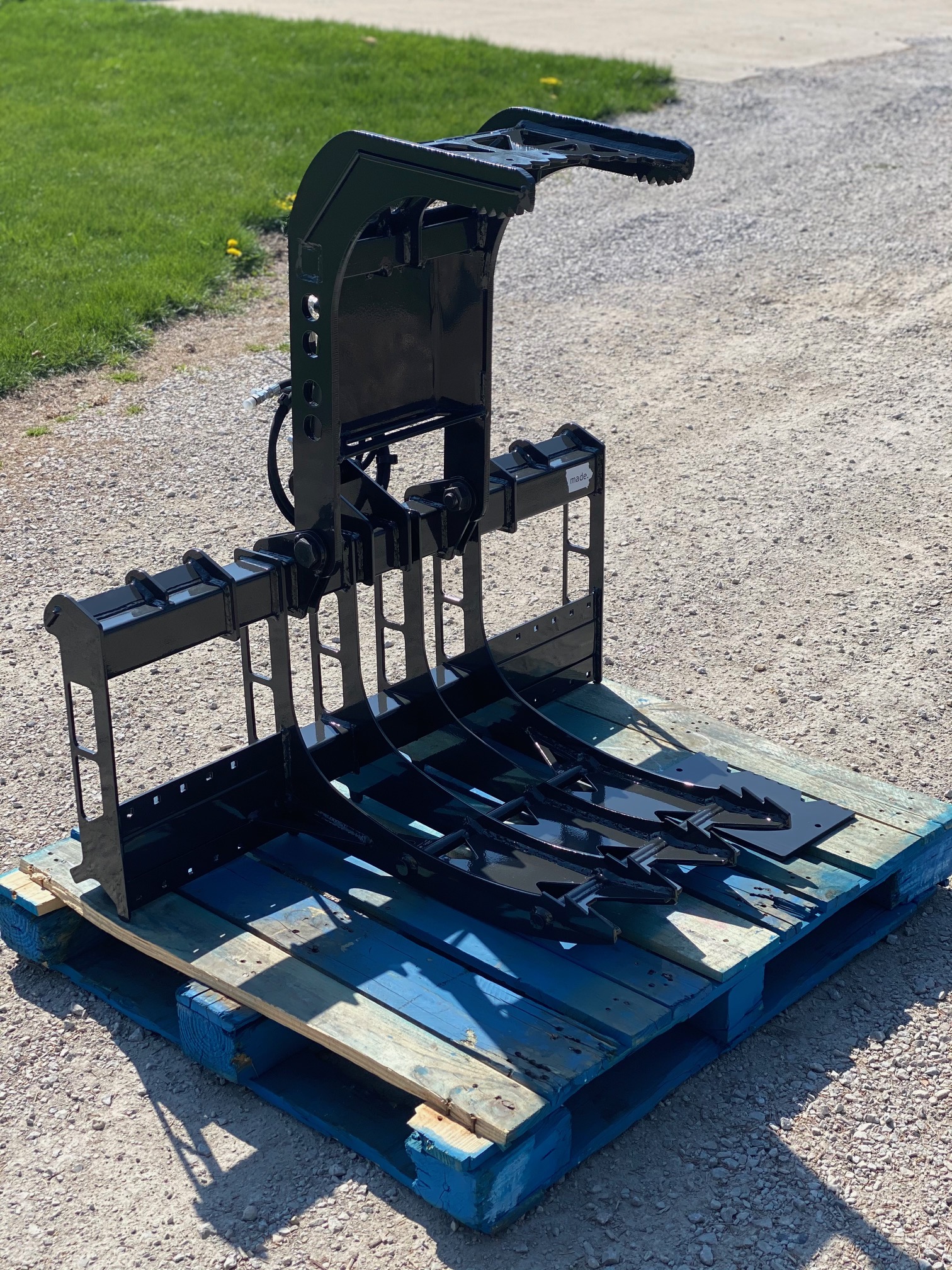

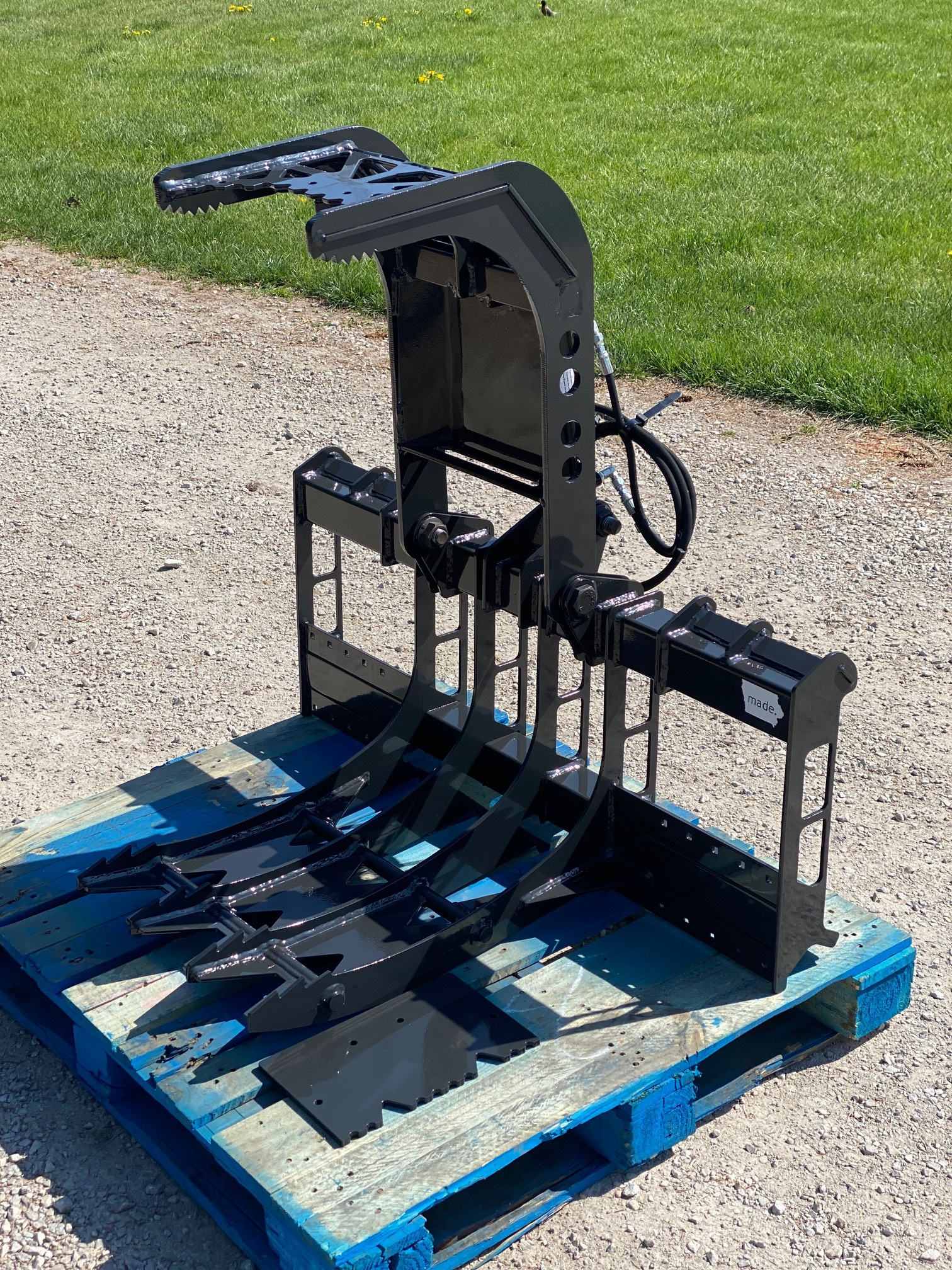

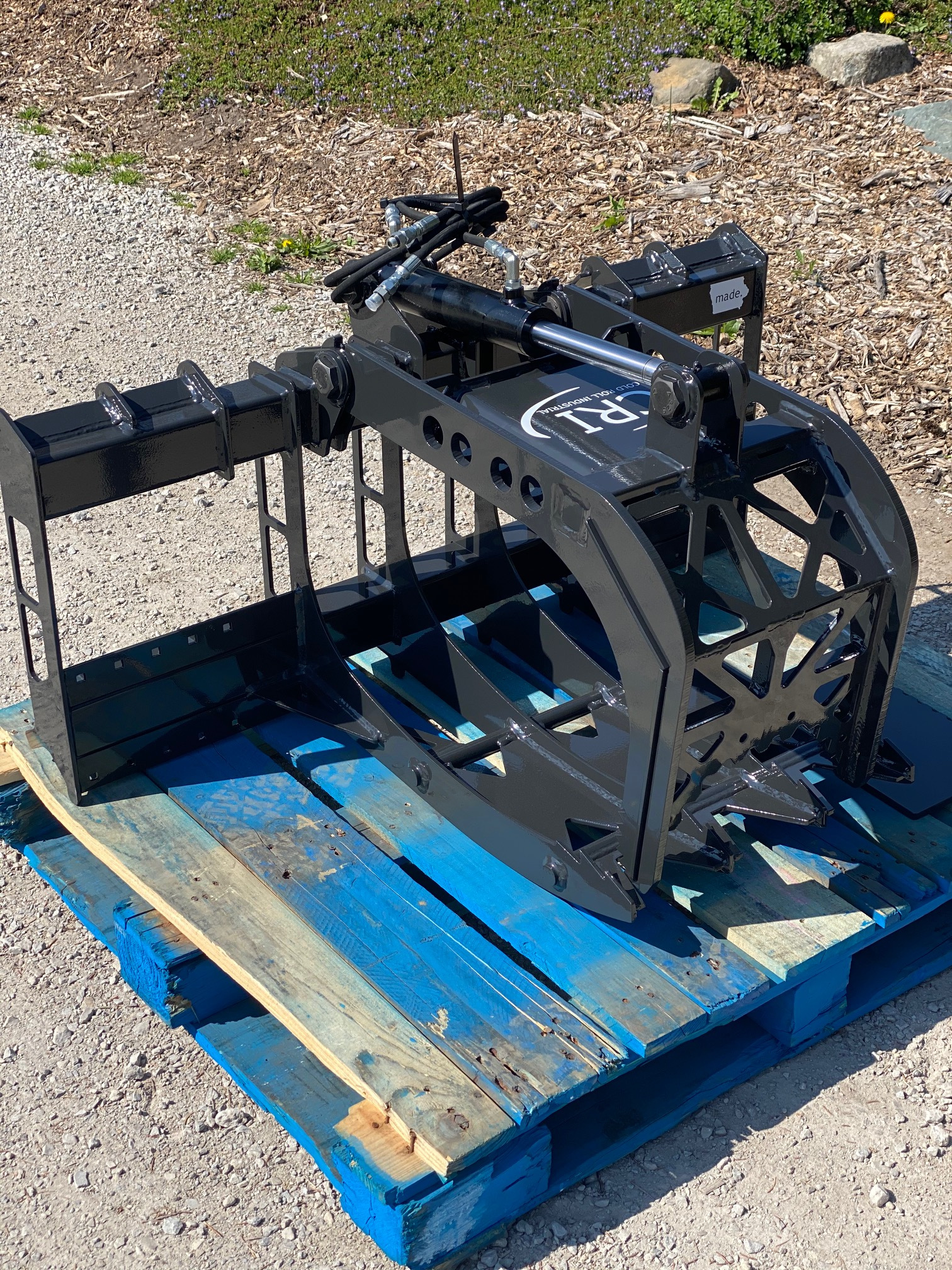

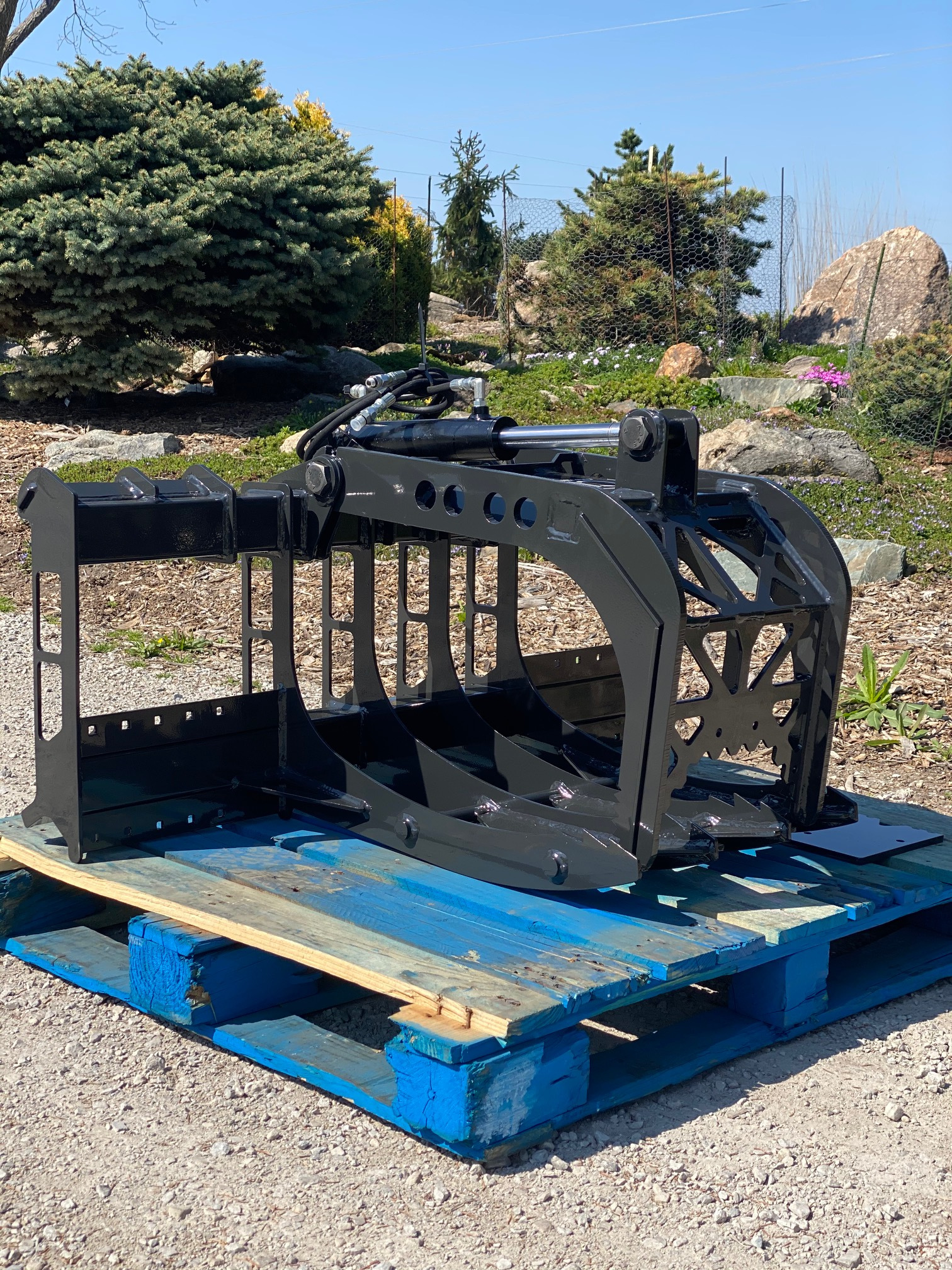

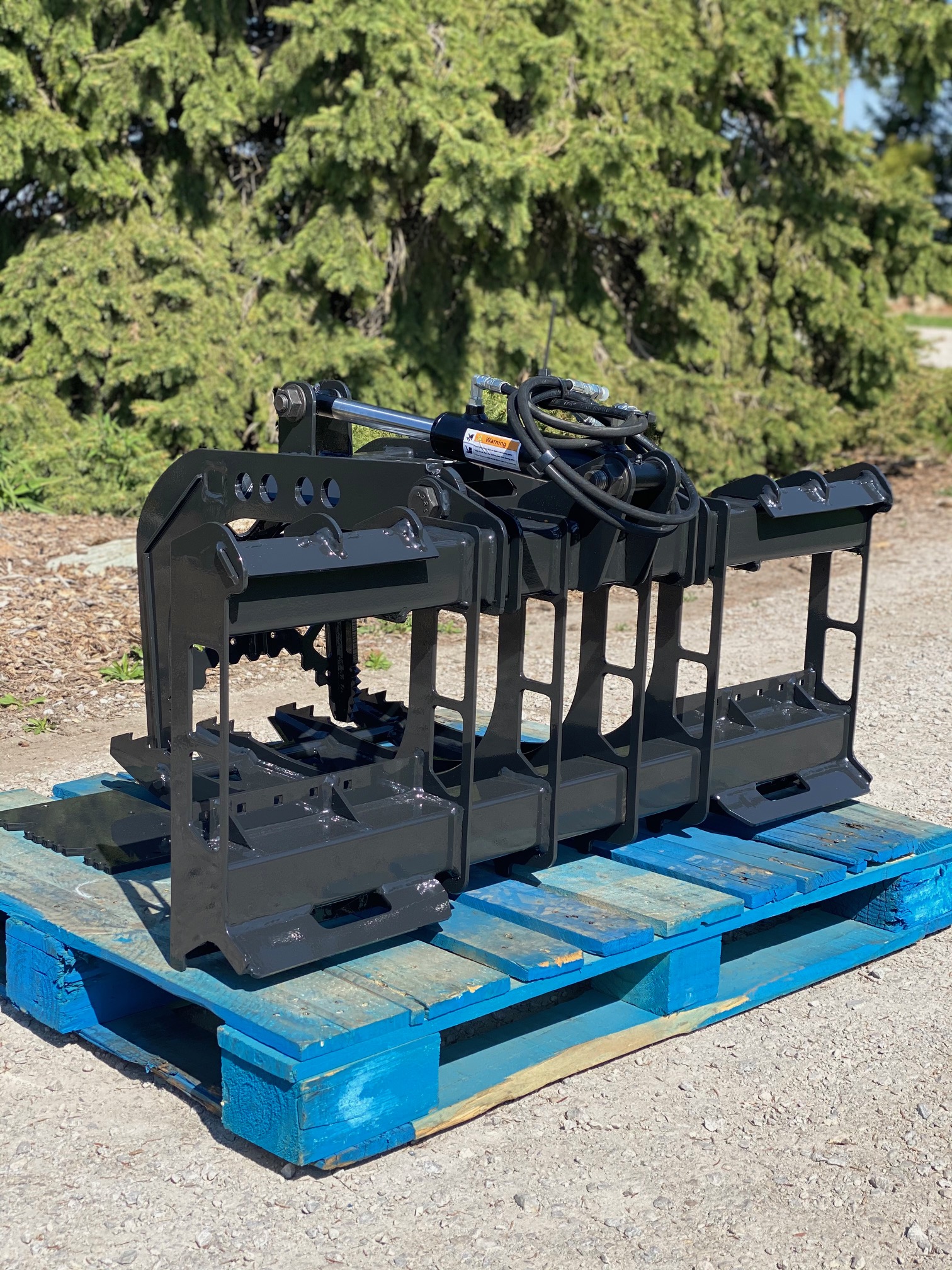

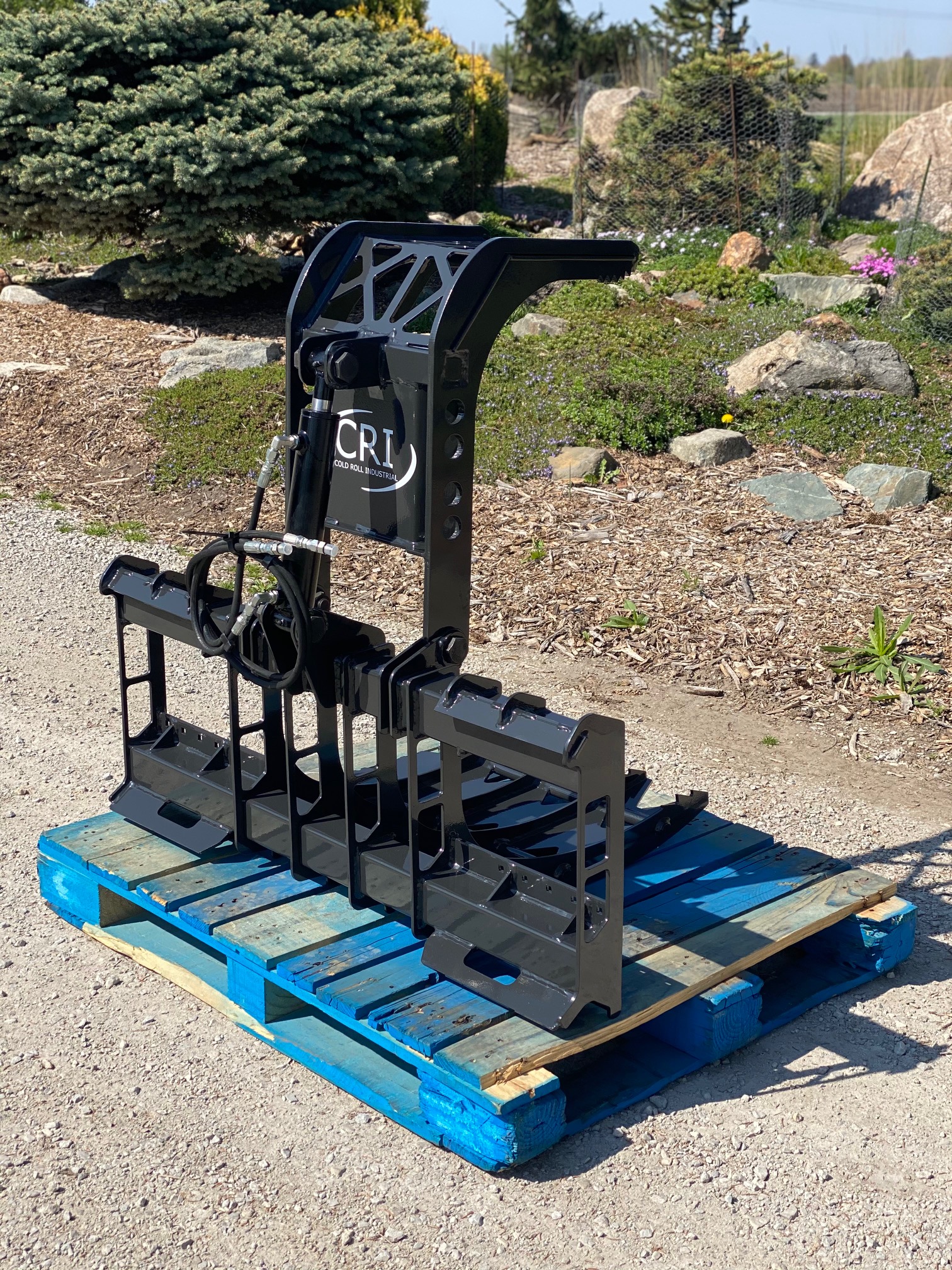

CRI Lightweight Skid Steer Attachment Grapple

Is it time for a fresh approach to grapples?  We thought so too and set out to stand apart from the industry with this new design.  Several improvements increase durability and usability over the competition while maintaining a class-leading lightweight design to maximize the amount of payload that can be lifted.   The full reinforcement plates protect the tines from bending during the inevitable side loading that can damage other grapples.

Can any other grapple be considered a digging tool?  The 18″ tine width and reinforced construction maximize ground pressure, allowing this grapple to engage the ground up to 25″ for removal of small stumps and getting under boulders.

Concerned with strength?  Don’t be.  Like all of our products, this has been extensively tested and refined so that you don’t need to worry about damaging it.   The 18″ width base also increases usability in confined spaces that a standard width grapple or bucket can’t get into – ideal for precision placement of landscaping boulders and other finesse grapple work.

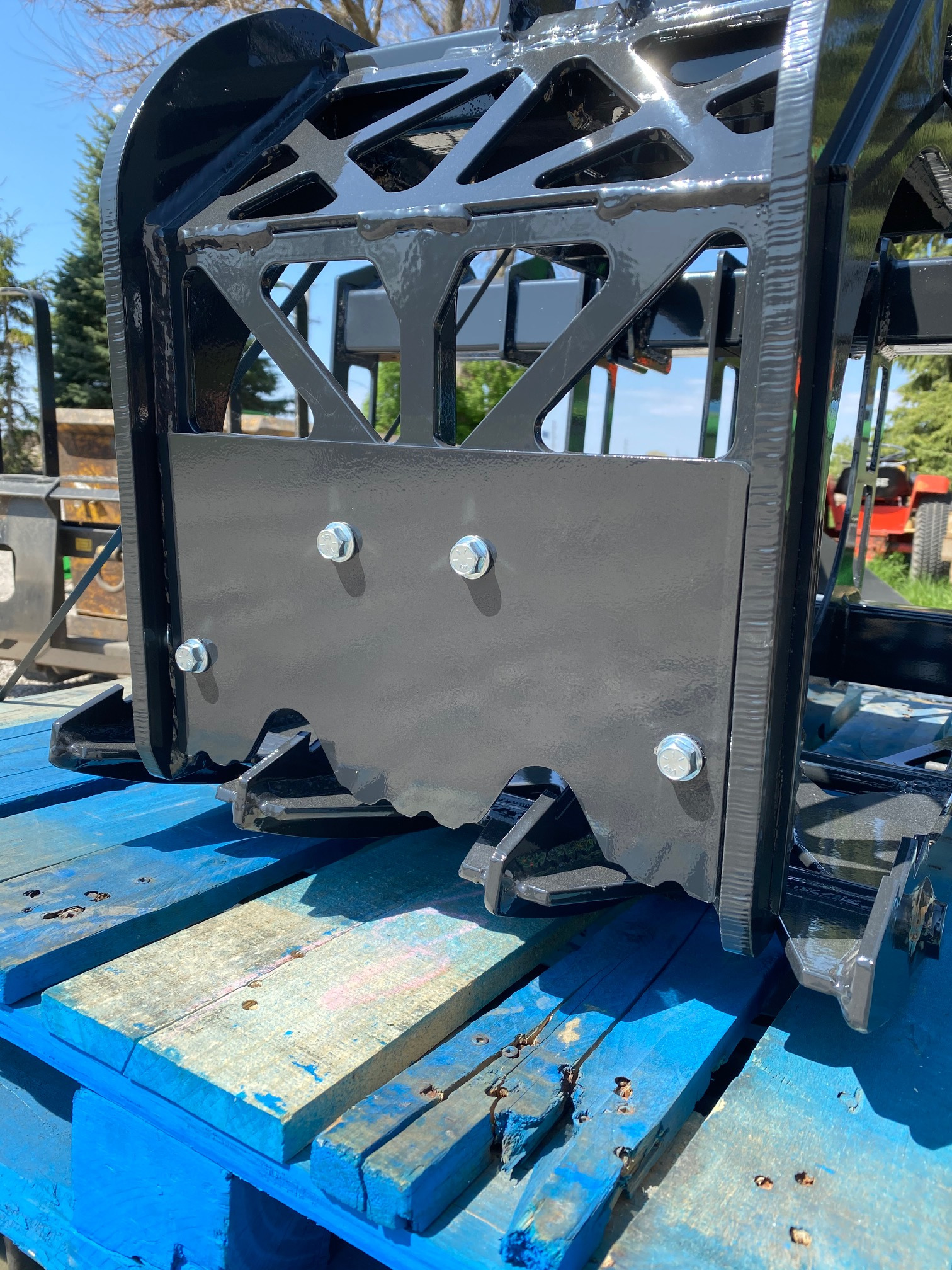

Features also include optional additional removable tines to increase the base width, retainer plates that can be bolted to the grapple sides, and a flat front tooth edge that can be bolted to the grapple mouth.

Price –

$2199.00 + Free Freight Shipping*



Specifications

  • Industry leading lightweight design to maximize lifting capacity – 195 lbs
    • Structural Analysis shown above with 3000 lb tip load – a weight to capacity rating of over 15x
  • Reinforced tines to eliminate bending
  • Modular design
    • Side tine extensions available
    • Grapple center tooth edge available
    • Grapple retainer plate available

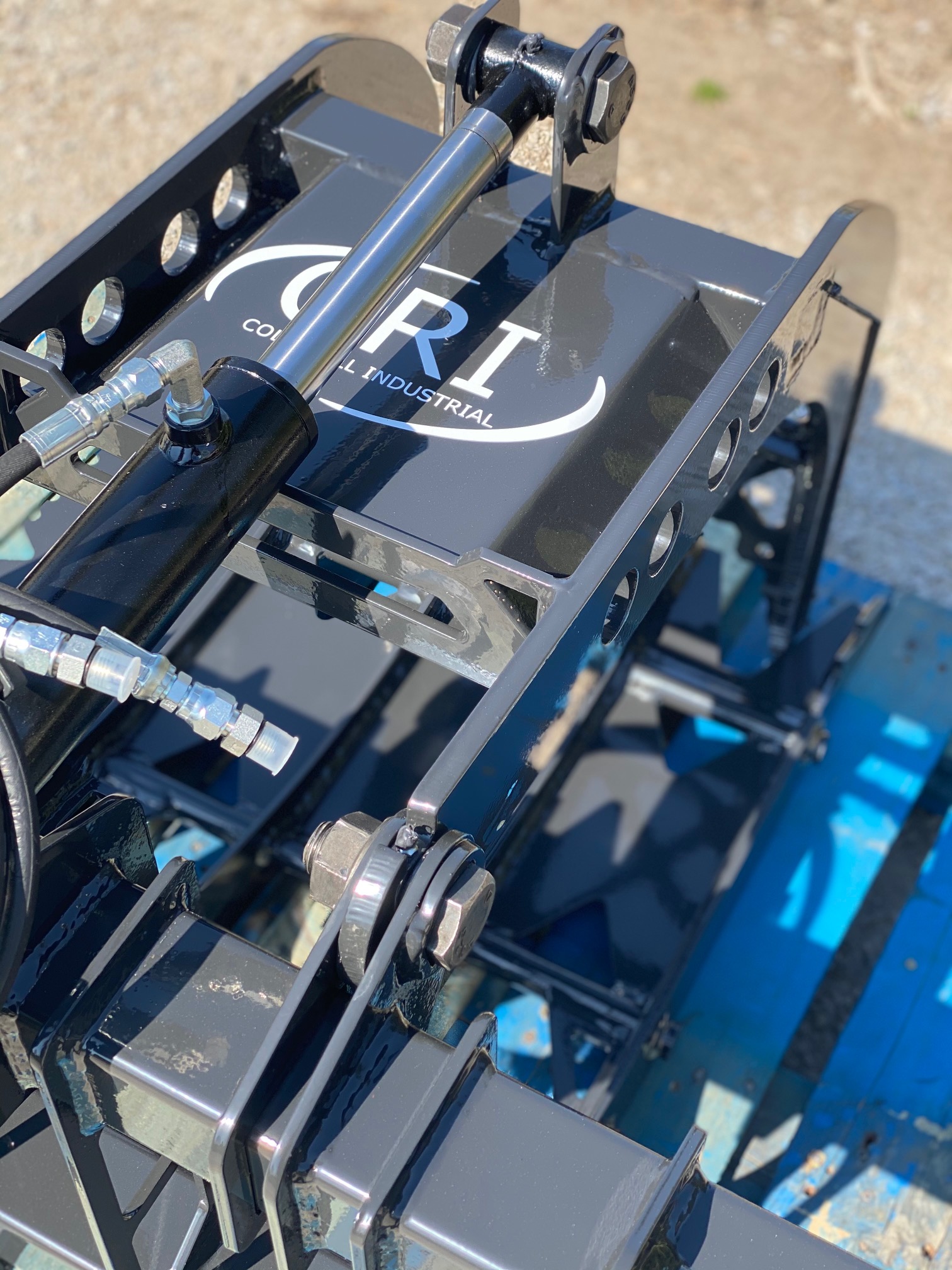

  • 3000 PSI hydraulic cylinder rating
    • Capable of providing nearly 10,000 lbs of force
  • 40″ grapple opening height
  • 25″ tine depth
  • 18″ tine width
  • Designed for use on compact tractors from 20 – 60 hp
    • Requires Skid Steer Quick Attach (SAE J2513, ISO 24410) loader mounting system commonly found on most compact tractors.  Please see our other model for a John Deere quick attachment system.

Options – Shown Below in Red

Tooth Edge – $65.00

  • Delivered Black, Includes Hardware Kit

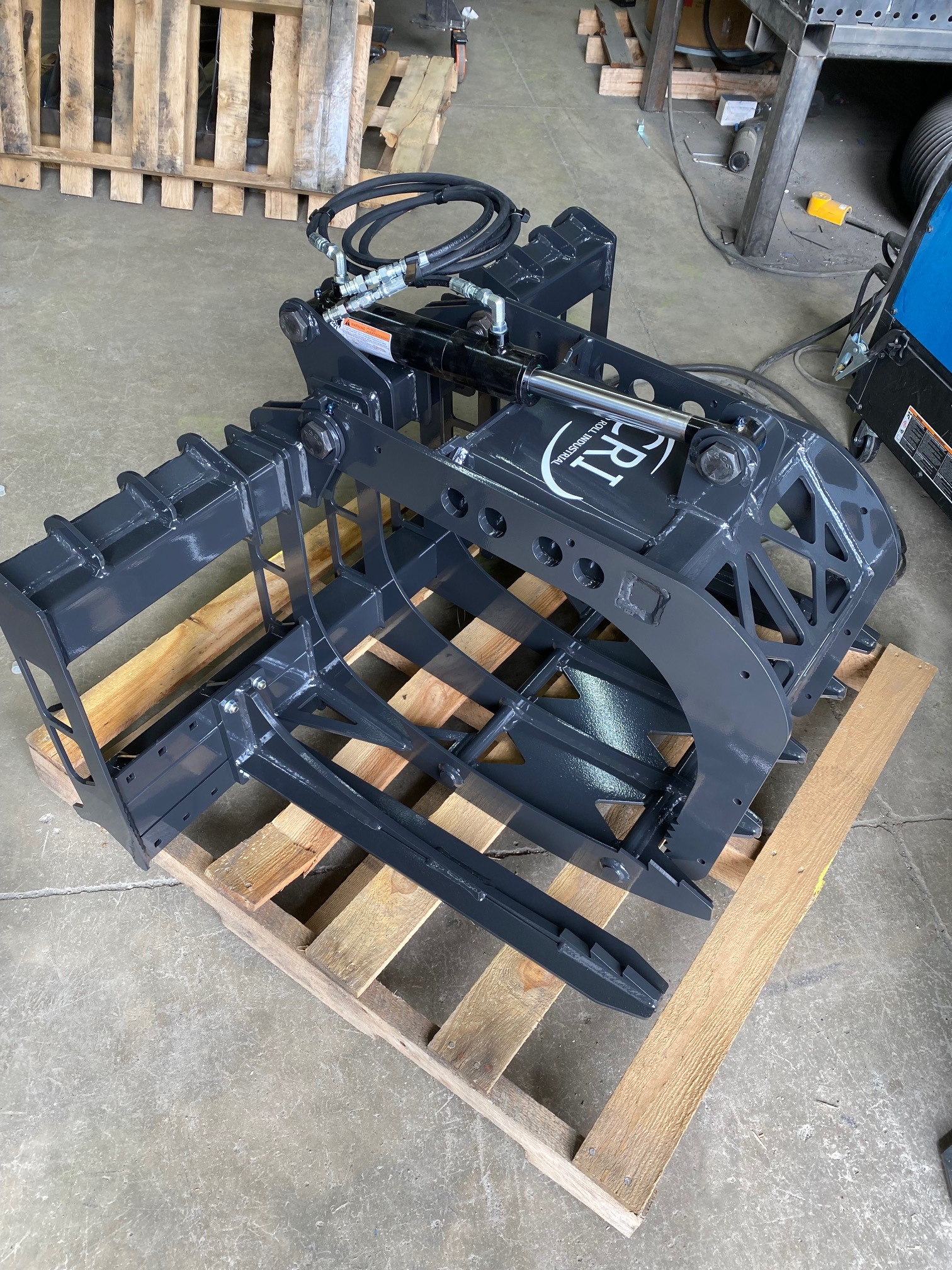

Modular Tines – $150.00

  • Delivered Grey, Includes Hardware Kit
  • Sold in pairs, up to 4 can be added per grapple
  • 18 lbs per tine

Please view our media page for additional product pictures.  Please contact us with any questions.

* Requires auxiliary hydraulic control valve

** Free freight shipping includes freight to a local business with a forklift/loading dock or to the nearest freight terminal of our carriers where you can pick up your order at your convenience.  Free freight is valid in lower 48, excluding CA.  Please contact us for a quote to other regions or if you have any questions regarding shipping.  Residential delivery services are also available for an additional fee if required.
